Place of Origin: | CHINA |
Brand Name: | Tongxin |
Certification: | IS0 |
Minimum Order Quantity: | 1 Unit/Units |
---|---|
Price: | Negotiable |
Packaging Details: | Standard Packing |
Delivery Time: | 15-30days |
Payment Terms: | T/T,L/C,Western Union,Paypal and MoneyGram |
Machine Weight: | 23kg | Dimensions (length × Width × Height): | 560 × 250 × 395mm |
---|---|---|---|
High Light: | vulcanizing machine accessories,vulcanizer accessories |

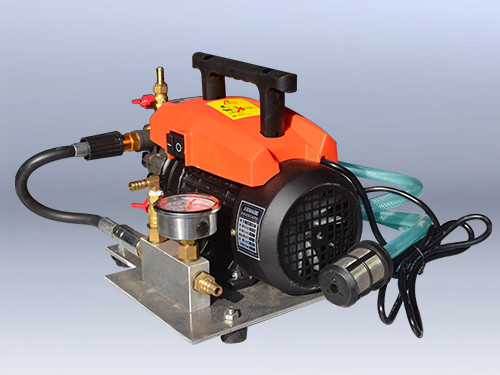

Mini electric hydraulic pump for vulcanizing machine
Technical parameters of miniature electric hydraulic pump for vulcanizing machine
No. Item Name Data
1 Rated discharge pressure 8l / min
2 Theoretical flow 8l / min
3 Pump speed 2800r / min
4 Working medium
5 Matching motor 1.1kw three-phase motor 50hz 380v
6 Lubricant 30 or more No. 40 oil 0.87l
7 Machine weight 23kg
8 Dimensions (length × width × height) 560 × 250 × 395mm
use
1. Turn on the power instantaneously, and check whether the pump is blocked or abnormal.
2. Connect the high-pressure hose, connect the end of the hose with the quick connector to the quick outlet of Benji's water outlet (16), and fasten the other end of the hose to the inlet of the hydraulic pressure plate of the adapter (the connection method of the quick connector) As long as the knurled shell is pushed axially towards the hose, the male connector of the quick connector can be inserted into the female connector, and then loosen the shell, and it can be automatically connected firmly.
