Tape Peeling Machine Wire Rope Transportation Metallurgy Mining Industry Use

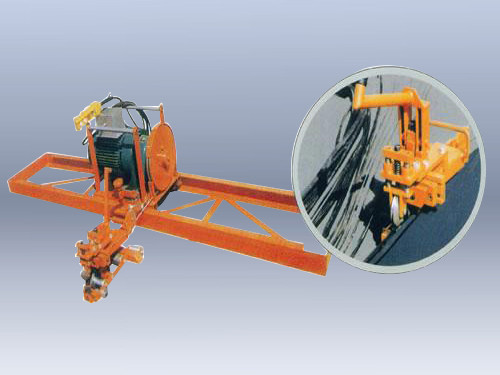

PBJ-2 wire rope transportation tape peeling machine (hereinafter referred to as the peeling machine), powered by ordinary power supply, easy to operate, reliable and portable, can complete the peeling of various steel wire rope transportation tapes, widely used in metallurgy, mining, cement, power plants, Auxiliary equipment for vulcanized joints of various steel wire rope transport tapes in the ports, building materials, chemical industries, etc.

Technical Parameters:

1. Scope of application: wire rope tape of various widths

2. The altitude does not exceed 2000M.

3. Working environment temperature: -20 ℃ ～ + 40 ℃.

4. The relative humidity of the air is not more than 85%.

5. In a gas or steam environment without damaging the insulation.

download Google:

1 Bandwidth of wire rope tape

2 Wire rope tape model or wire rope diameter

Instructions:

1. First, peel off a piece of wire about 15 cm wide from the end of the wire rope transport tape to be scraped. Remove the rubber on both sides and fix the tape.

2. Install the upper and lower blades, align the lower blade with the center of the wire rope, adjust the tension of the pressure roller bolts, press down the handle, use the wire rope to connect the rack to move, and drive the blade to separate the rubber from the wire rope.

Notes for use:

1. The professional electrician should operate the power supply;

2. The peeling machine should be fixed during use to prevent sliding;

3. Do not exceed the relevant requirements when peeling.
