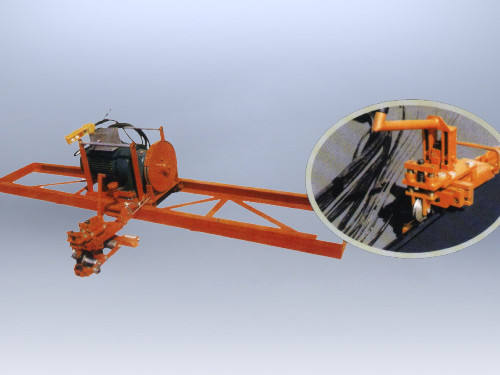

Compact Structure Belt Stripper 0.3m / S Linear Speed Stable Operation

PBJ-2 electric wire peeling machine for wire rope conveyor

Scope of application:
Separation of the covering rubber and canvas of various fabric cores and wire rope core conveyor belts, and the covering rubber and steel wire rope and canvas;

Features:
1. Large peeling area and fast speed can greatly reduce labor intensity and time required for joints;

2. Light weight, easy to carry and carry;

3. Stable operation.

Technical Parameters:
1. Mechanical and electrical power: 0.75KW

2. Linear speed: 0.3m / s

3. Maximum peeling width: 200mm (NN, EP conveyor belt and wire rope conveyor belt) 400mm (common belt)

Instructions:
1. According to the conventional method of centering the conveyor belt, separate the corresponding joints with a knife and separate the first layer;

2. Put the belt stripping machine into an appropriate position and fix it with a wire rope;

3. Turn on the power;

4. Clamp the separated first layer with a clamp, start the motor, and use a cutter to cut the peeled part in an appropriate place;

5. After the first layer is peeled off, repeat the above relevant steps to peel off the second and third layers, etc. respectively;

Notes for use:
1. The professional electrician should operate the power supply;

2. The peeling machine should be fixed during use to prevent sliding;

3. Do not exceed the width when peeling.
